Specification:
- Objective Lens: 24mm
- Effective Distance: 240m
- Magnification: 1x
- Diopter: +/-5
- Battery: CR123 Lithium Battery(not including)
Package include :
Box *1
Gen 2 Night Vision Device *1

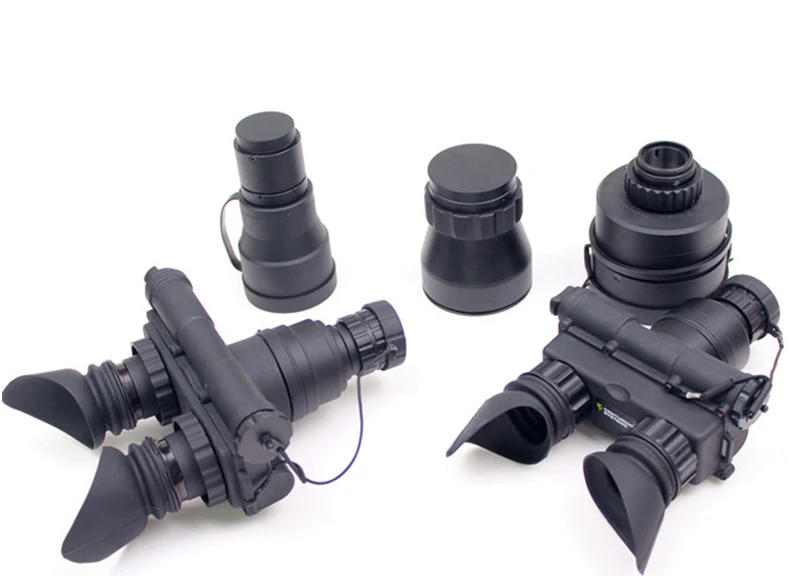

Lens *1 ( standard is 1x. Also have the lens of 3x, 5x, 8x , if need others, please contact with us, thank you)
Helmet *1

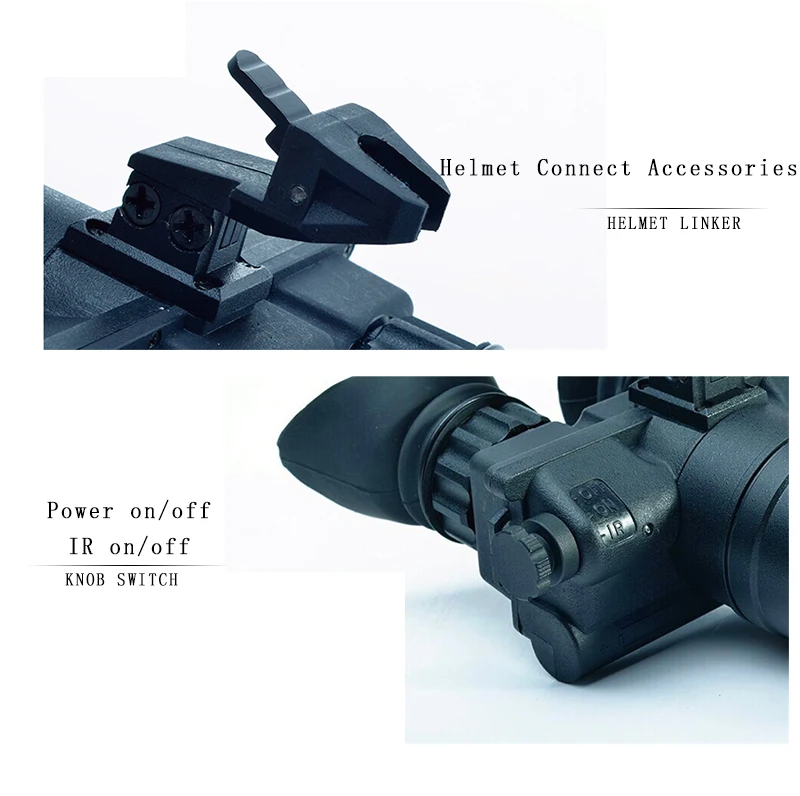

Helmet Tipper holder *1
Connect Holder *1

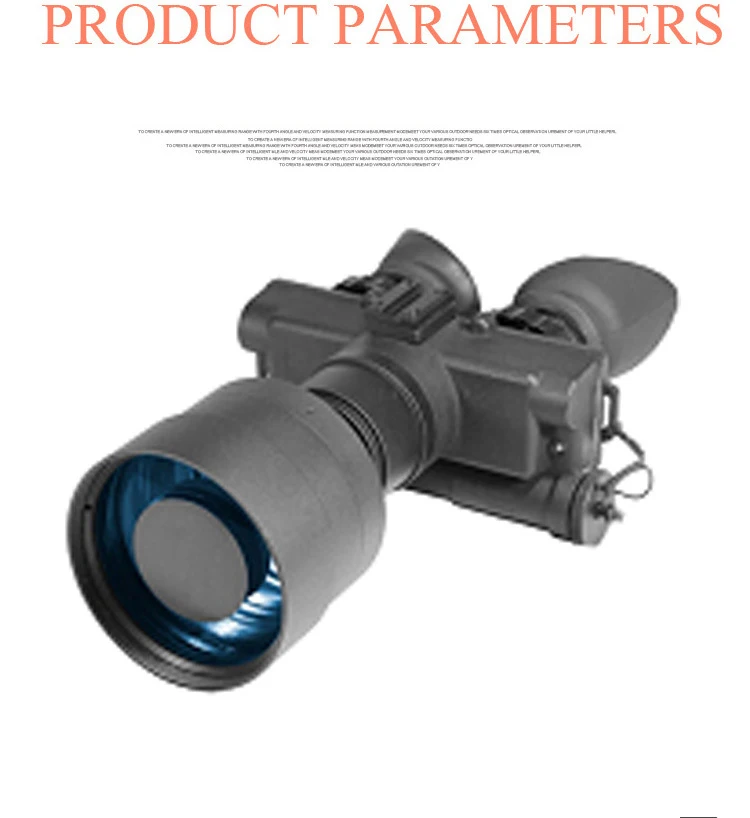

- Magnification : 1x / 3x / 5x / 8x zoom（magnification lens need customized ，defaut is 1X lens )

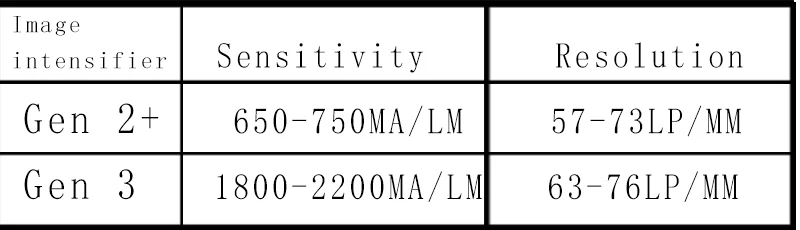

- Resolution ( LP/MM): more than 72 (US standard HTP FOM 1250)
- Visual Distance(m) : more than 240
- Code recognition range :180 meter
- Field angle (degree) : 40 +/ -2

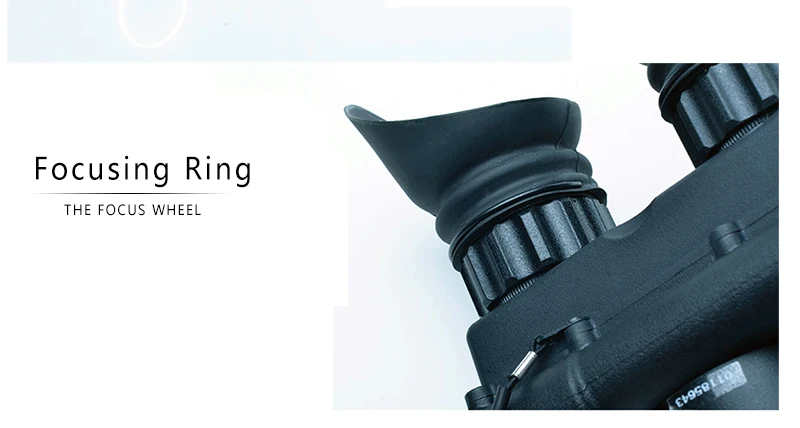

- Focusing range (m) : 0.3 – infinity
- Range of accommodation : -5 , +5
- Power supply voltage(v): CR123 lithium battery
- Objective focal length(mm): 27
- Objective aperture(mm): 24
- Outlet diameter(mm): 20
- Exit pupil diameter(mm) : 7
- Exit pupil distance(mm) 23
- Working temperature(degree centigrade): -40 to +50
- Storage temperature(degree centigrade) : -50 to +60
- Size(mm): 178 x 112 x 62
- Weight (kg): 0.48
- Operating time( close infrared) : 60 h
- Operating time ( Open Infrared) : 40 h

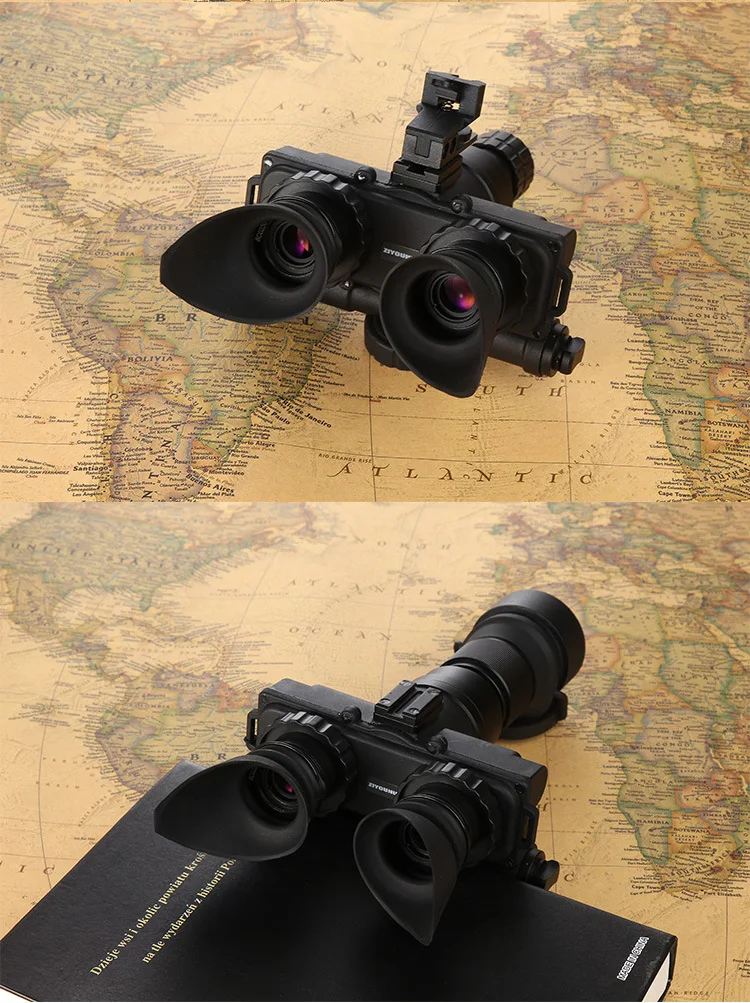

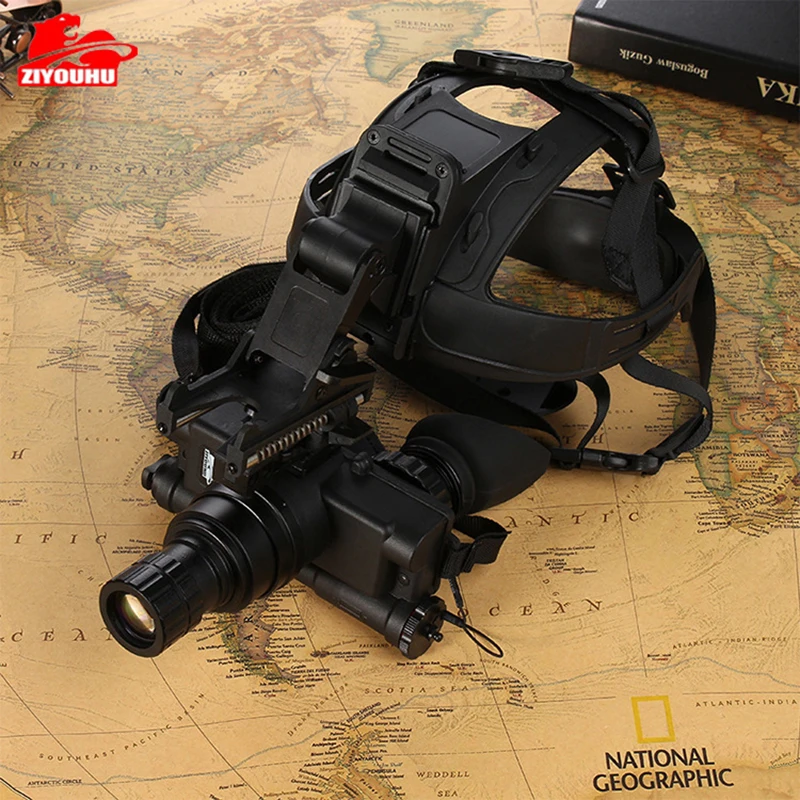

- HB-Y 5I is a binocular single tube telescope night vision device.
- It can handheld or headwear helmet mounted.
- Image intensifier level : 5I

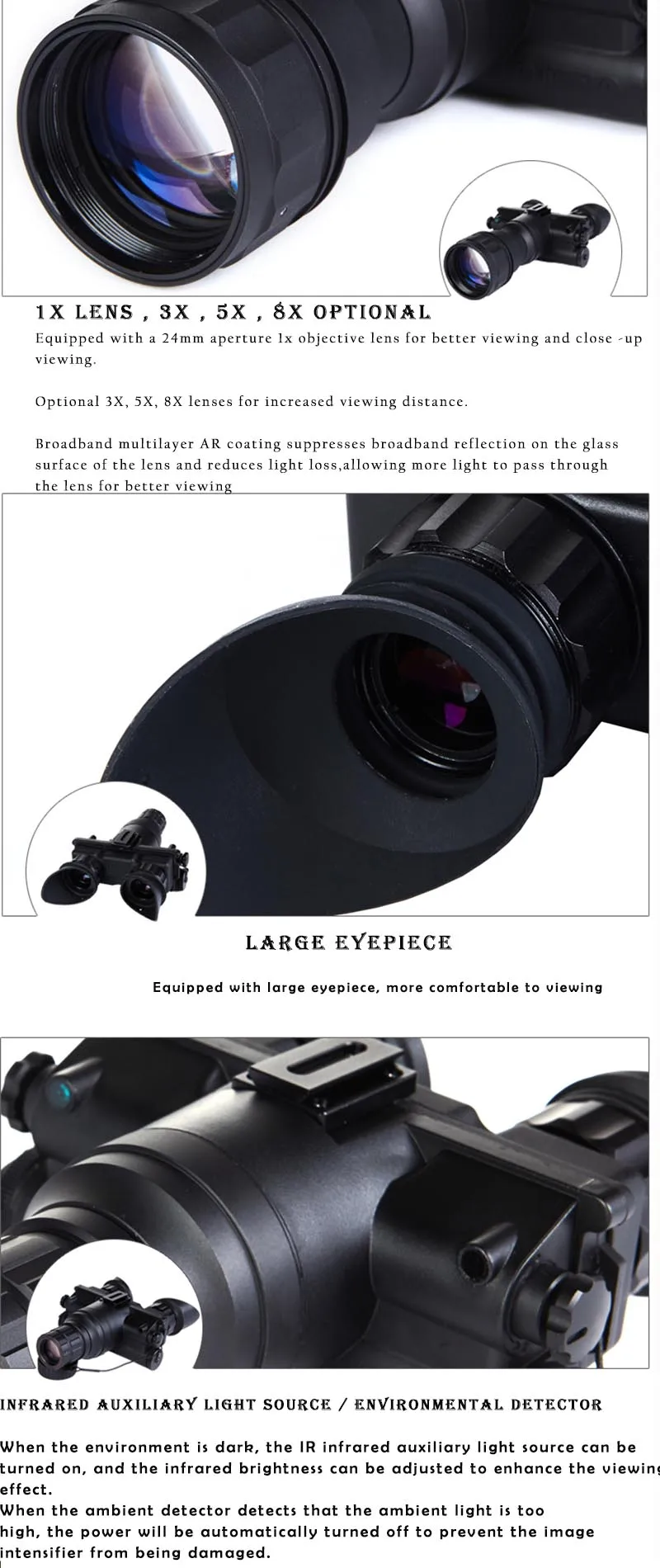

- This machine can install 1, 3, 5, 8 times lens. （default is 1X lens, other lens need customized）
- When the lens is mounted 8 times, it can be connected to the 3 foot frame for remote observation.

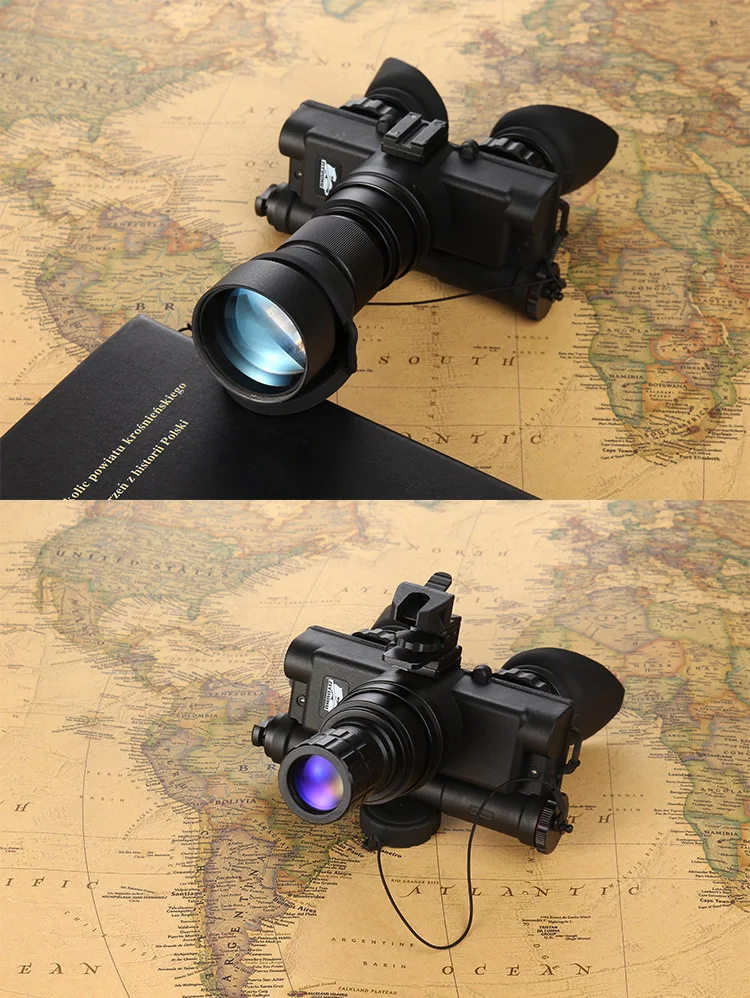

- High power infrared light can be installed.
- It has the function of AUTO. When the head is in use, it will turn upwards and wear the bracket, and the equipment will shut dowm automatically.
- Strong light protection and automatic brightness control function.
- Built in wide-angle infrared light for target search
-
Gen 2+ Image Intensifier Tube Night Vision Device can be for military tactical hunting use
