Name: Thermal Imaging Monocular For Hunting 25mm Lens WIFI, APP Real-time Photograph Hot Spot Tracking Handheld Thermal Vision Camera
SKU: 7076
Availability: InStock

S25X Thermal Imaging Monocular

Тепловизионный монокуляр S25X

Uncooled Thermal Monocular

Domestically developed detector with high sensitivity (384*288,17μm)

-Hand-held thermal imaging monocular.

-Small size, one-handed operation (moving observation), easy to carry.

-Support WIFI image transmission, and real-time mobile APP browsing,recording, photographing, playback.

Video output

When in use, open the video interface cover at the bottom of the instrument and insert the configured video cable, which can be connected to the display or other long-distance transmission.

Feature :

· New design for exterior, button and eyepiece, more comfortable and convenient to operate

· Domestically developed detector with high sensitivity (384*288,17μm)

· HD display screen with resolution 1280*960 for higher display range and image magnification.

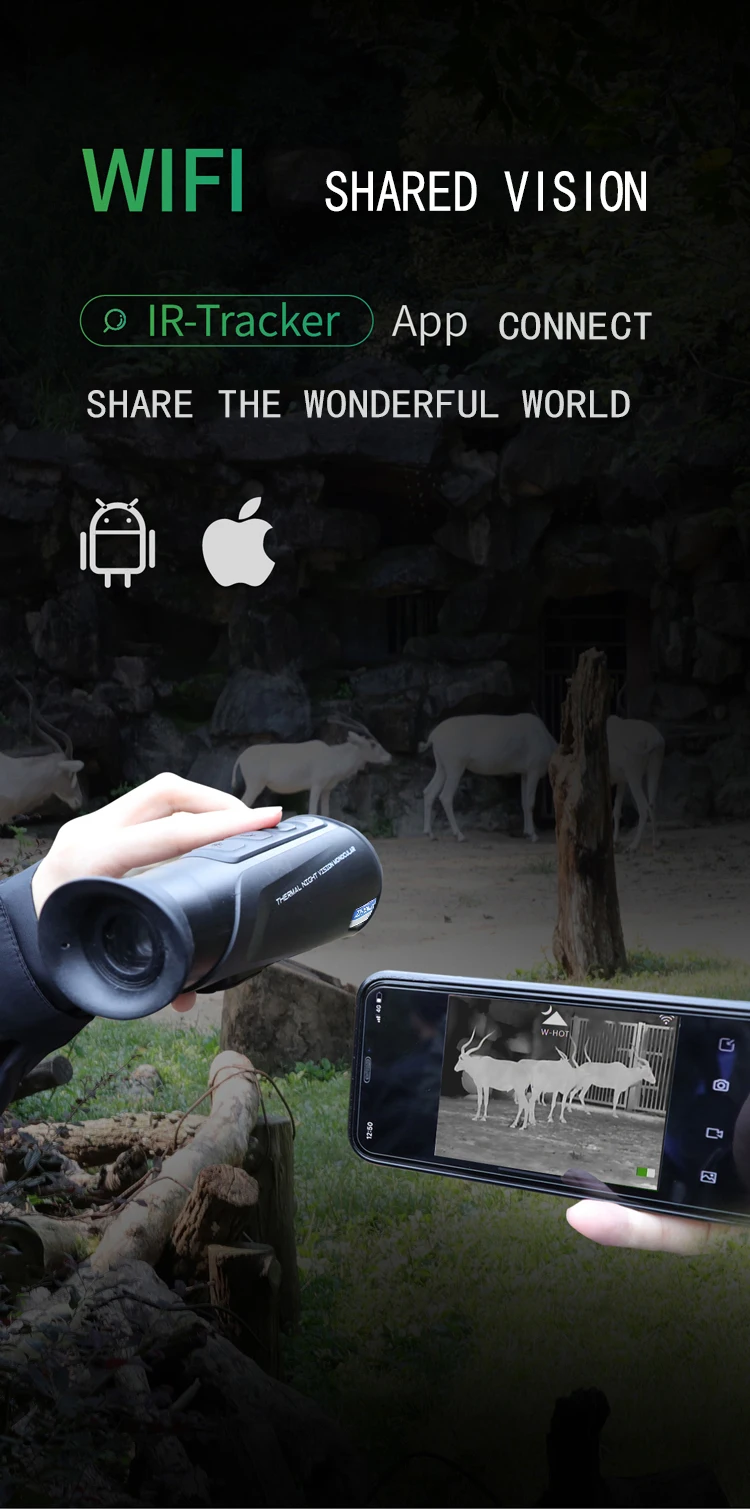

· Live transmission through WIFI, APP real-time photographing, recording, motion alarm, thermal camera control and other operations on smartphone

· Various lens for optional to meet different needs

· Built-in distance estimation function.

· Built-in reticle and picture-in-picture function, more easy to observe and aim.

Observation Distance for reference

Detection distance : 800m for a human who are in 1.8 x 0.5m (15mm lens)

1100m for a car which size is 2.3 x2.3m ( 15mm lens )

Recognition distance: 400m for a human who are in 1.8 x 0.5m ( 15mm lens )

550m for a car which size is 2.3 x 2.3m ( 15mm lens )

Specification

Item		S253	S256
Detector	Type	Uncooled FPA
	Array size	384×288	640*480
Image	FOV	14°*10.5°	17.7°*13.3°
	Focal Length	25mm	35mm
	NETD	80mk@30℃
	Frame rate	50HZ
	Focus	Fixed
	Digital Zoom	2X, 3X, 4X
	Spectral range	8-14μm
	Image Transmission	Live transmission through WIFI, APP real-time browsing, recording, photographing, playback and other operations on smartphone
	Crosshair	Yes

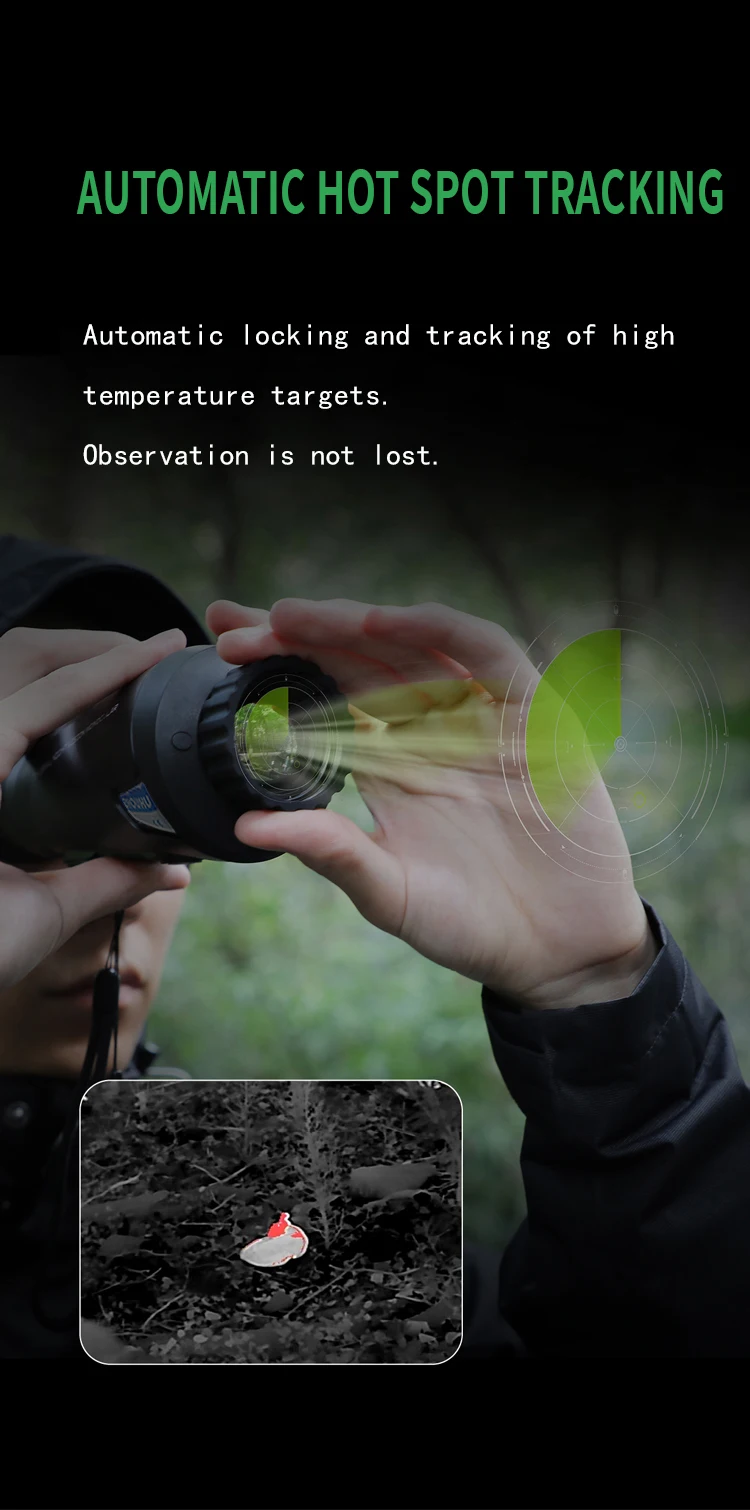

	Hot spot tracking	Yes

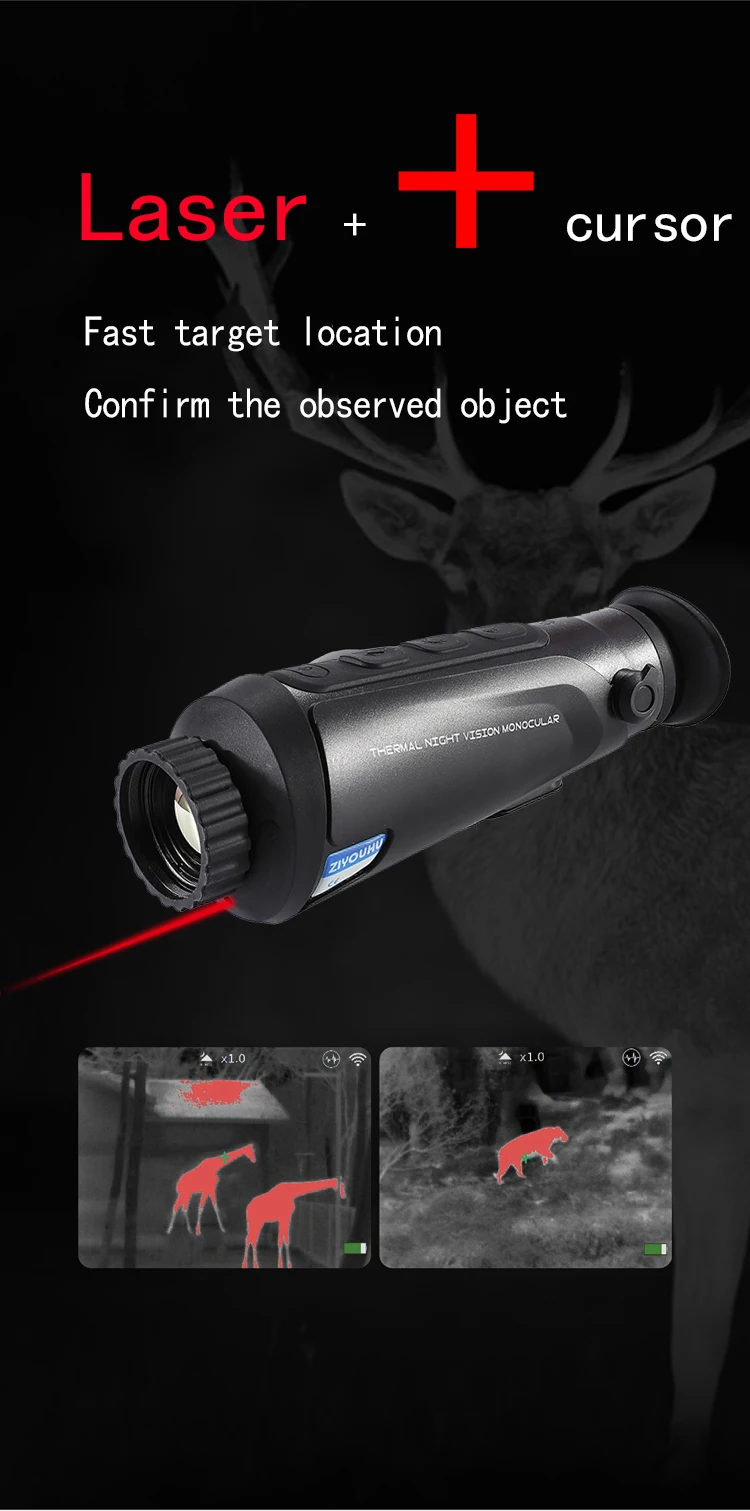

	Laser Indicator	Yes
	Picture-in-picture	Yes
	Ranging	Yes
Display	Display	1280*960 Color screen

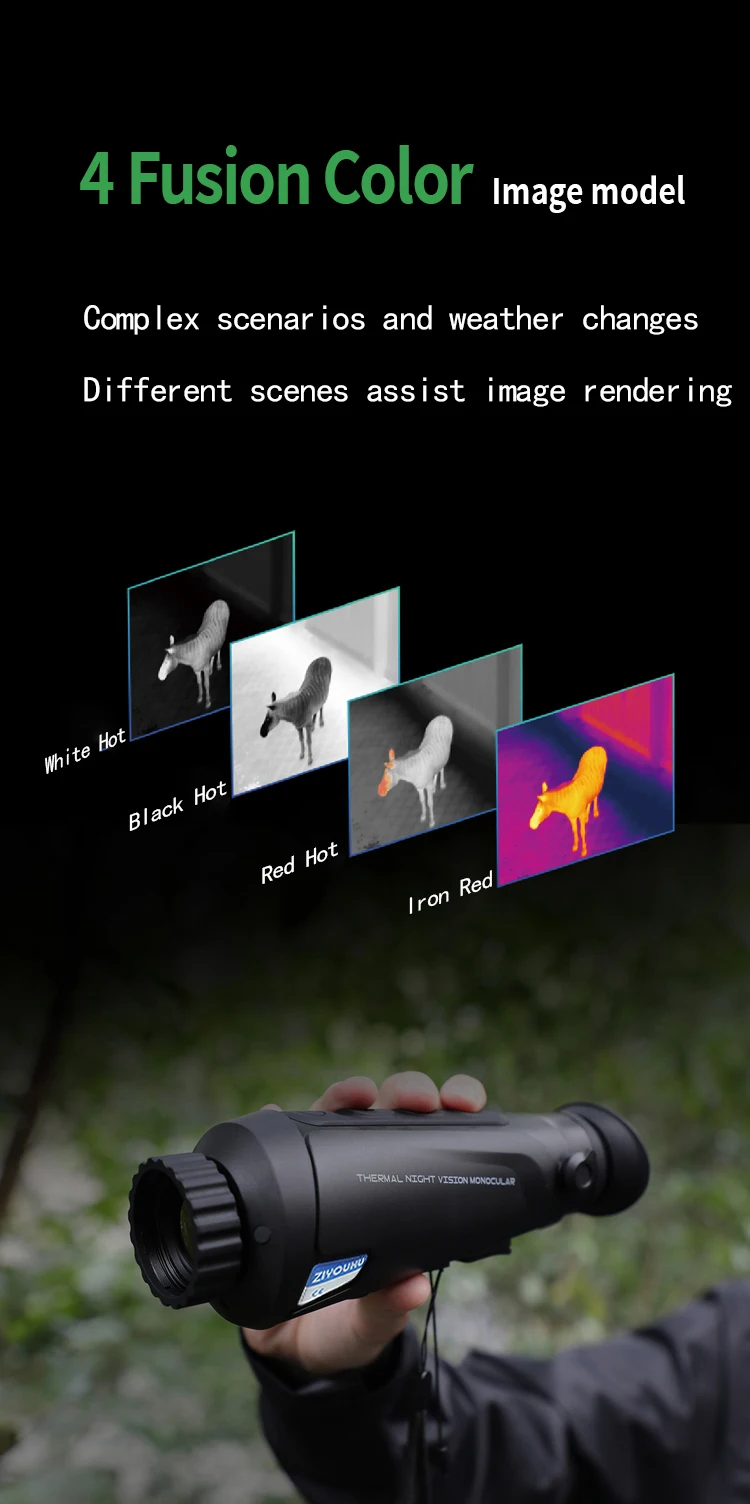

	Polarity	Black Hot, White Hot, Red Hot
	Diopter adjustment	Yes
Power	Battery type	Li-ion, rechargeable
	Working Time	5 Hours continuous operation
	Charging Type	USB charging and power bank support
	External power	DC5V/2A（Micro USB）
Environment parameters	Operation temperature	-20℃- +50℃
	Storage temperature	-40℃- +60℃
	IP ratings	IP66
	Drop resistance	1 M
Physical parameters	Weight	<0.5Kg
	Dimension	<1907070mm
Interface	Power interface	Yes
	Video output	PAL
	USB	For external charging
Detection distance	Human	800m	1100m
	Vehicle	1100m	1500m
Recognition distance	Human	400m	550m
	Vehicle	550m	750m

Weight	1 kg
Model Number	S253
Detector Resolution	384X288
FOV	14°x10.5°
Color	S253, S253 with screen
